Advanced SPE Cartridges

GS Labloure ”Affinity” products revolutionize Solid Phase Extraction (SPE). Affinity SPE product range provides greater reproducibility with cleaner, more consistent extracts. Affinity SPE products provide unparalleled performance characteristics compared to liquid-liquid extraction, phospholipid removal and protein precipitation products.

Our Sorbent Chemistries

Explore our comprehensive range of Affinity™ SPE chemistries designed for diverse analytical needs. Click 'View Protocol' on any cartridge for a general usage guide.

HLB SPE Cartridge

HLB

Reversed Phase Polymeric

HLB Protocol
Condition:
500 μL methanol
Equilibrate:
500 μL water
Load:
100-500 μL sample (1 mL/min)
Wash 1:
500 μL water
Wash 2:
500 μL 5% methanol
Elute:
200-500 μL methanol

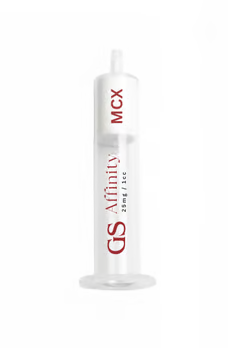

MCX SPE Cartridge

MCX

Mixed Mode Strong Cation Exchanger

MCX Protocol
Condition:
500 μL methanol
Equilibrate:
500 μL water + 1% FA
Load:
Sample + 1% FA (1 mL/min)
Wash 1:
500 μL water + 1% FA
Wash 2:
500 μL methanol + 1% FA
Elute:
MeOH + 2% NH₄OH
MAX SPE Cartridge

MAX

Mixed Mode Strong Anion Exchanger

MAX Protocol
Condition:
500 μL methanol
Equilibrate:
500 μL water + 1% NH₄OH
Load:
Sample + 1% NH₄OH (1 mL/min)
Wash 1:
500 μL water + 1% NH₄OH
Wash 2:
500 μL methanol + 2% NH₄OH
Elute:
Methanol + 1% FA
WAX SPE Cartridge

WAX

Mixed Mode Weak Anion Exchanger

WAX Protocol
Condition:
500 μL methanol
Equilibrate:
500 μL water + 1% FA
Load:
Sample + 1% FA (1 mL/min)
Wash 1:
500 μL water + 1% FA
Wash 2:
500 μL methanol + 1% FA
Elute:
MeOH + 2% NH₄OH

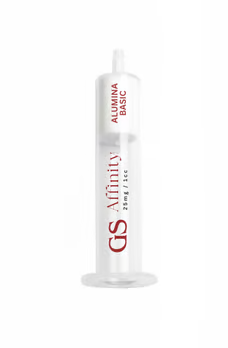

Alumina Basic SPE Cartridge

ALUMINA BASIC

Normal Phase / Lewis Acid

Alumina Protocol

Protocol varies greatly. Generally involves non-polar conditioning/equilibration, sample load in non-polar solvent, wash, and elute with polar solvent.

Request Details →
WCX SPE Cartridge

WCX

Mixed Mode Weak Cation Exchanger

WCX Protocol
Condition:
500 μL methanol
Equilibrate:
500 μL water + 1% NH₄OH
Load:
Sample + 1% NH₄OH (1 mL/min)
Wash 1:
500 μL water + 1% NH₄OH
Wash 2:
500 μL methanol + 1% NH₄OH
Elute:
Methanol + 1% FA

The Affinity™ Advantage

The new generation Affinity SPE sorbents are spherical with a uniform particle size. They also have a high surface area and high density of functional groups on the particle surface.

Broad application pH range, optimized pore size, and uniform surface functional groups. These sorbents therefore readily satisfy the need for high sensitivity in analyzing different drugs and chemicals.

Affinity SPE’s unique particle technology not only ensures the consistency of the sorbents size and internal pore structure, but also brings about high recovery and good reproducibility for specific adsorption.

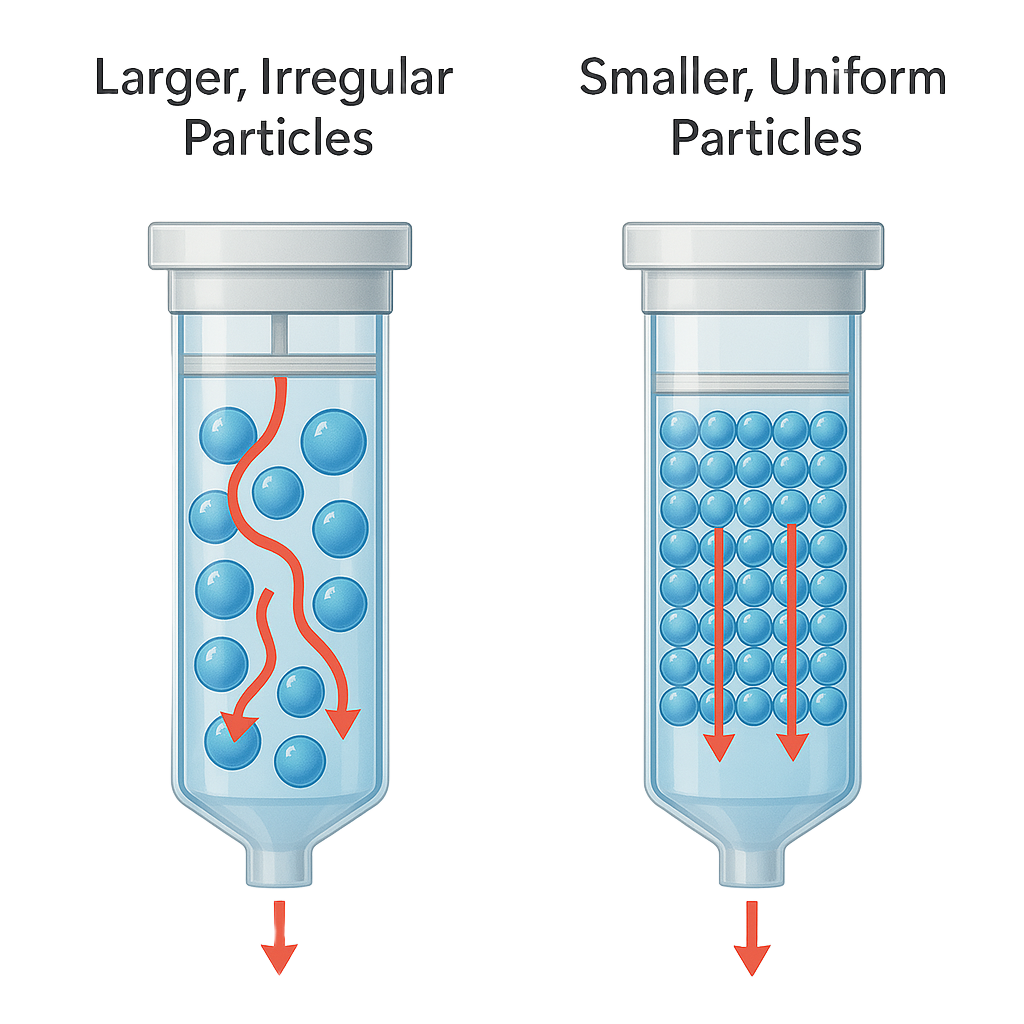

Affinity SPE Particle Technology Comparison

Generic SPE Protocol

A generic Solid Phase Extraction (SPE) protocol is recommended when working with a diverse range of acidic, basic, and neutral compounds to ensure the effective removal of unretained matrix components like salts, lipids, and proteins. This process typically involves conditioning the SPE cartridge, loading the sample to allow the matrix to pass through while retaining the target compounds, washing to eliminate impurities, and finally eluting the purified acidic, basic, and neutral compounds. The goal is to achieve consistent and reproducible extraction by isolating the compounds of interest from complex sample matrices, ensuring accurate and reliable analytical results.

Affinity™ Mixed-Mode

For basic compounds, the Affinity mixed-mode MCX generic method is recommended, as it efficiently removes unretained matrix components in reverse-phase mode, followed by the elimination of retained non-basic interferences in ion-exchange mode. Similarly, for acidic compounds, the Affinity MAX generic method employs the same mixed-mode approach, ensuring that matrix interferences are thoroughly removed while the target compounds are selectively retained and purified. This dual-phase method enhances the reliability and reproducibility of the extraction process, making it ideal for handling complex samples with both basic and acidic compounds.

Product Information & Protocols

General Affinity™ SPE Methods

The generic AFFINITY product methods outlined below are designed as a starting point for most sample extraction protocols.

HLB (Reversed-phase)
Condition: 500 μL methanol
Equilibrate: 500 μL water
Load: 100 to 500 μL sample
Wash 1: 500 μL water
Wash 2: 500 μL 5% methanol
Elute: 200-500 μL methanol
MCX (Strong Cation Exchanger)
Condition: 500 μL methanol
Equilibrate: 500 μL water + 1% FA
Load: Sample + 1% FA
Wash 1: 500 μL water + 1% FA
Wash 2: 500 μL methanol + 1% FA
Elute: MeOH + 2% NH₄OH
MAX (Strong Anion Exchanger)
Condition: 500 μL methanol
Equilibrate: 500 μL water + 1% NH₄OH
Load: Sample + 1% NH₄OH
Wash 1: 500 μL water + 1% NH₄OH
Wash 2: 500 μL methanol + 2% NH₄OH
Elute: Methanol + 1% FA
WAX (Weak Anion Exchanger)
Condition: 500 μL methanol
Equilibrate: 500 μL water + 1% FA
Load: Sample + 1% FA
Wash 1: 500 μL water + 1% FA
Wash 2: 500 μL methanol + 1% FA
Elute: MeOH + 2% NH₄OH
WCX (Weak Cation Exchanger)
Condition: 500 μL methanol
Equilibrate: 500 μL water + 1% NH₄OH
Load: Sample + 1% NH₄OH
Wash 1: 500 μL water + 1% NH₄OH
Wash 2: 500 μL methanol + 1% NH₄OH
Elute: Methanol + 1% FA

Available Formats

DescriptionBed weightVolumeQuantity
Affinity HLB25 mg1 mL100 pk
Affinity MCX25 mg1 mL100 pk
Affinity MAX25 mg1 mL100 pk
Affinity WCX25 mg1 mL100 pk
Affinity WAX25 mg1 mL100 pk
Alumina BasicSpecifySpecifySpecify
Affinity 96 Well Plate10 / 25 mg1 mL1 Plate
