Sample Preparation Instruments

Sample Preparation Systems

Laboratory systems engineered for reproducible SPE processing, solvent evaporation, vortex mixing, LLE workflows, vacuum drying, and ultrasonic cleaning.

Explore Systems Download Brochure

Built for Reliable Lab Throughput

GS Labloure designs and manufactures sample preparation systems for pharmaceutical, bio-analytical, environmental, and research laboratories.

The range supports efficient, controlled, and repeatable workflows across SPE cleanup, high-throughput concentration, sample mixing, extraction, drying, storage, and cleaning.

144sample capacity options
SS 316available for robust manifolds
0-25 inHgvacuum control range
33 kHzultrasonic bath frequency

Product Range

A focused portfolio for sample preparation workflows before chromatographic analysis.

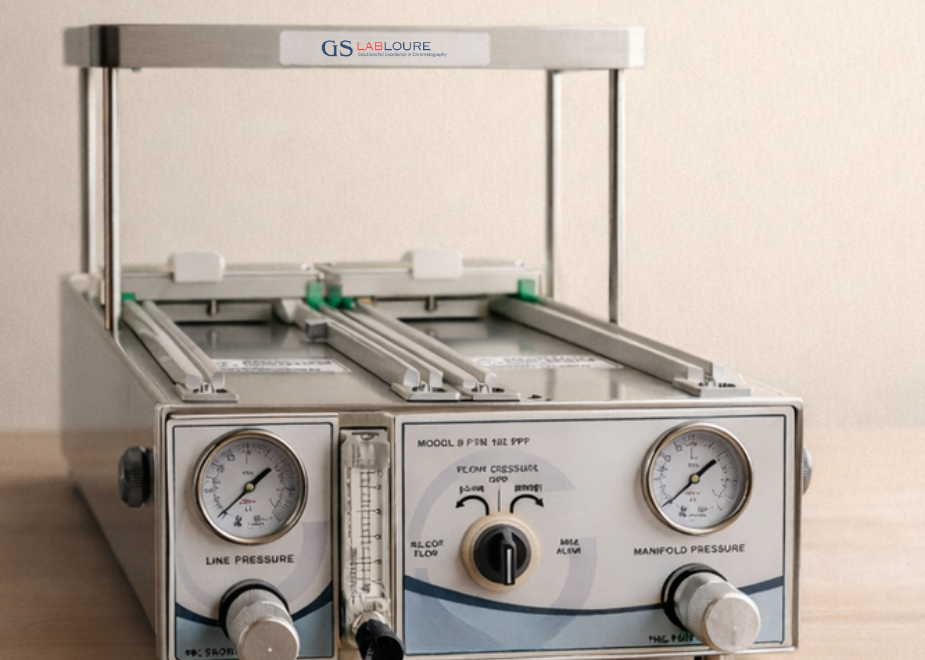

Positive Pressure SPE Manifold

Nitrogen-Driven SPE Processing

Positive Pressure SPE Manifold

A nitrogen-driven manifold designed to apply uniform positive pressure across multiple SPE cartridges for consistent and reproducible sample preparation.

  • High-throughput processing up to 144 samples
  • Uniform nitrogen pressure with controlled flow distribution
  • Individual flow control for reproducibility
  • SS 316 construction with LED illumination
Material
SS 316
Gas
Nitrogen
Flow Rate
Max 10 LPM
Pressure Range
0-4 bar
Capacity
144 samples

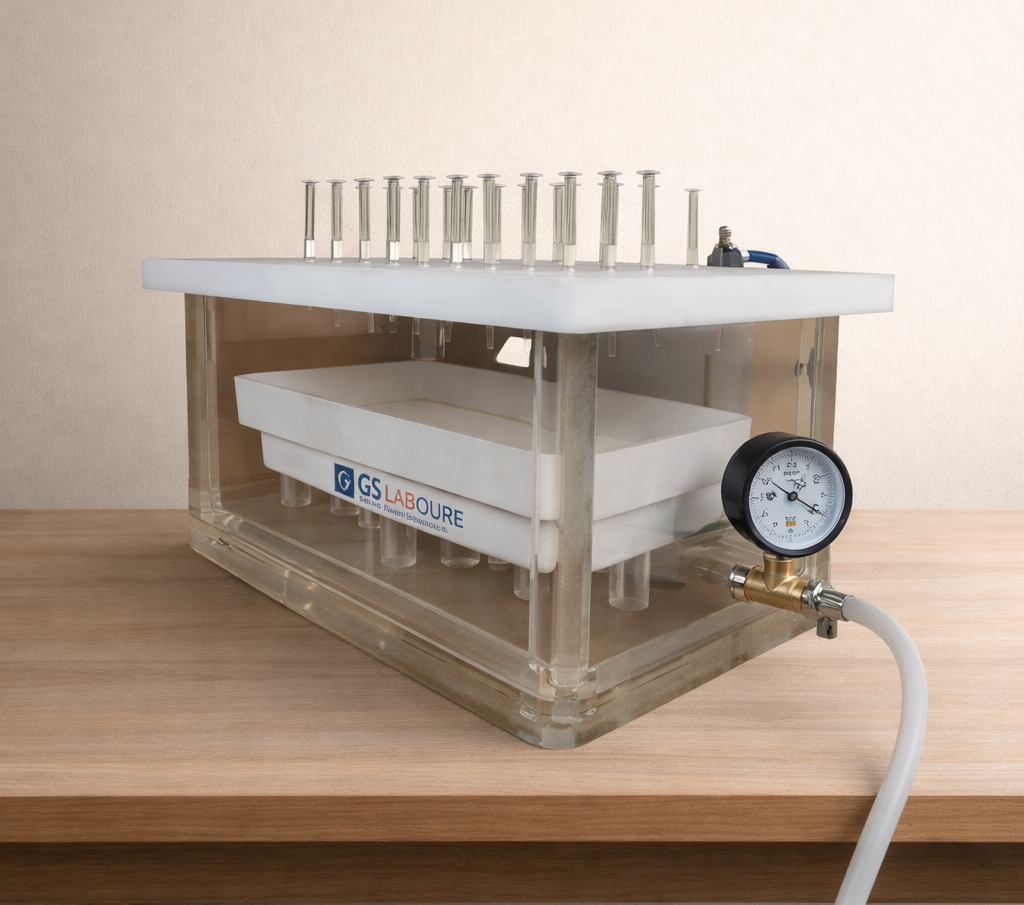

Negative Pressure SPE Manifold

Vacuum-Assisted SPE Processing

Negative Pressure SPE Manifold

A vacuum-assisted SPE manifold for parallel cartridge processing using controlled negative pressure.

  • Processes up to 100 SPE cartridges simultaneously
  • Available in 12, 24, 48, and 100 port options
  • Compatible with standard SPE cartridges and tubes
  • Transparent acrylic chamber for real-time monitoring
Chamber
Acrylic
Vacuum Range
0-25 inHg
Cover
100-position with fittings and stop plugs
Accessories
Guide needles, waste container
Nitrogen Evaporator

High-Throughput Sample Concentrator

Nitrogen Evaporator

A high-throughput nitrogen evaporator for rapid, uniform solvent evaporation and sample concentration in bio-analytical workflows.

  • Up to 144 samples evaporated simultaneously
  • Controlled nitrogen flow across all positions
  • Dual pressure regulators and gauges
  • Touchscreen controller for temperature and time
Capacity
144 positions
Temperature
Approx. 40 C
Nitrogen Pressure
Up to 120 PSI
Evaporation Rate
Up to 10 mL/min, solvent dependent
Body
Stainless steel

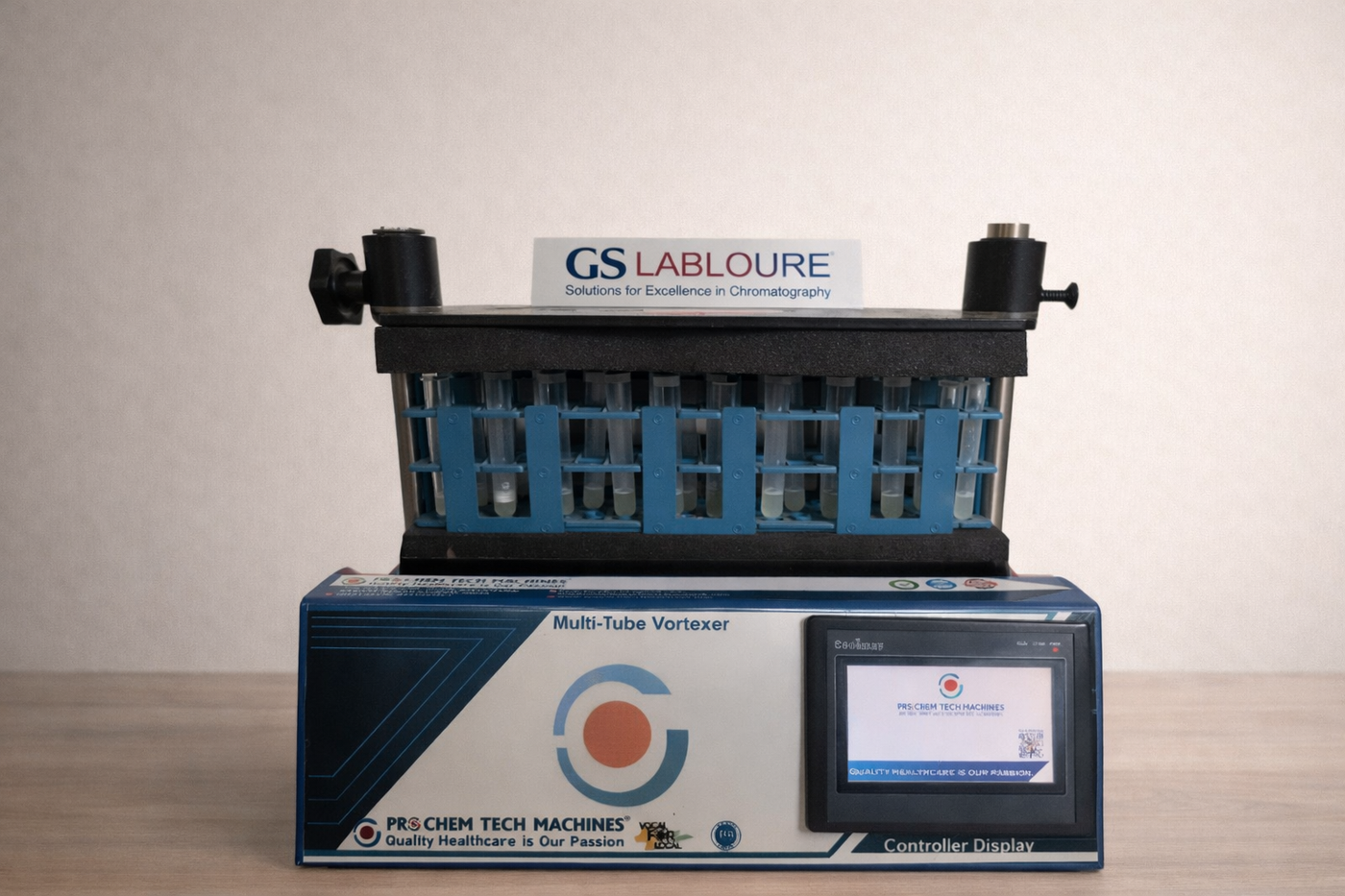

Multi-Tube Vortexer

High-Throughput Mixing System

Multi-Tube Vortexer

A multi-tube vortexing system for simultaneous, uniform mixing of multiple samples in high-throughput laboratories.

  • Vortexes multiple tubes simultaneously
  • Uniform agitation across all positions
  • User-defined RPM, time, and pulse modes
  • Touchscreen interface with quiet, stable operation
Modes
Continuous, pulse, programmable
Speed
Variable RPM
Applications
Pharma, clinical, and research labs

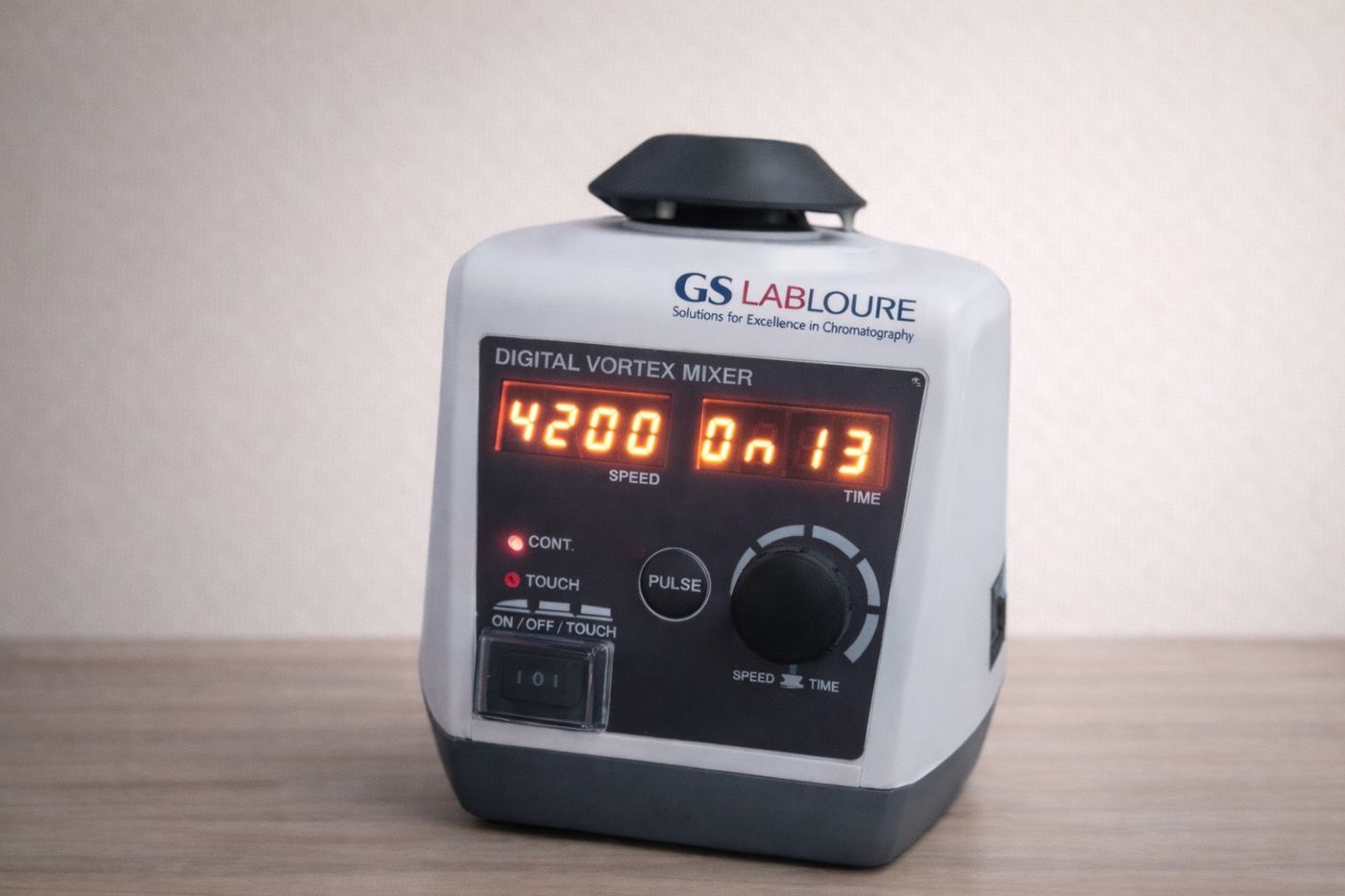

Handy Vortexer

Compact Bench-Top Vortex Mixer

Handy Vortexer

A compact vortex mixer for quick and efficient mixing of small-volume samples in routine laboratory use.

  • Compact design for limited bench space
  • Efficient high-speed vortexing for small volumes
  • Adjustable speed for different sample types
  • Touch and continuous modes
Operation
Touch / continuous
Speed
Variable
Applications
Research, clinical, and educational labs

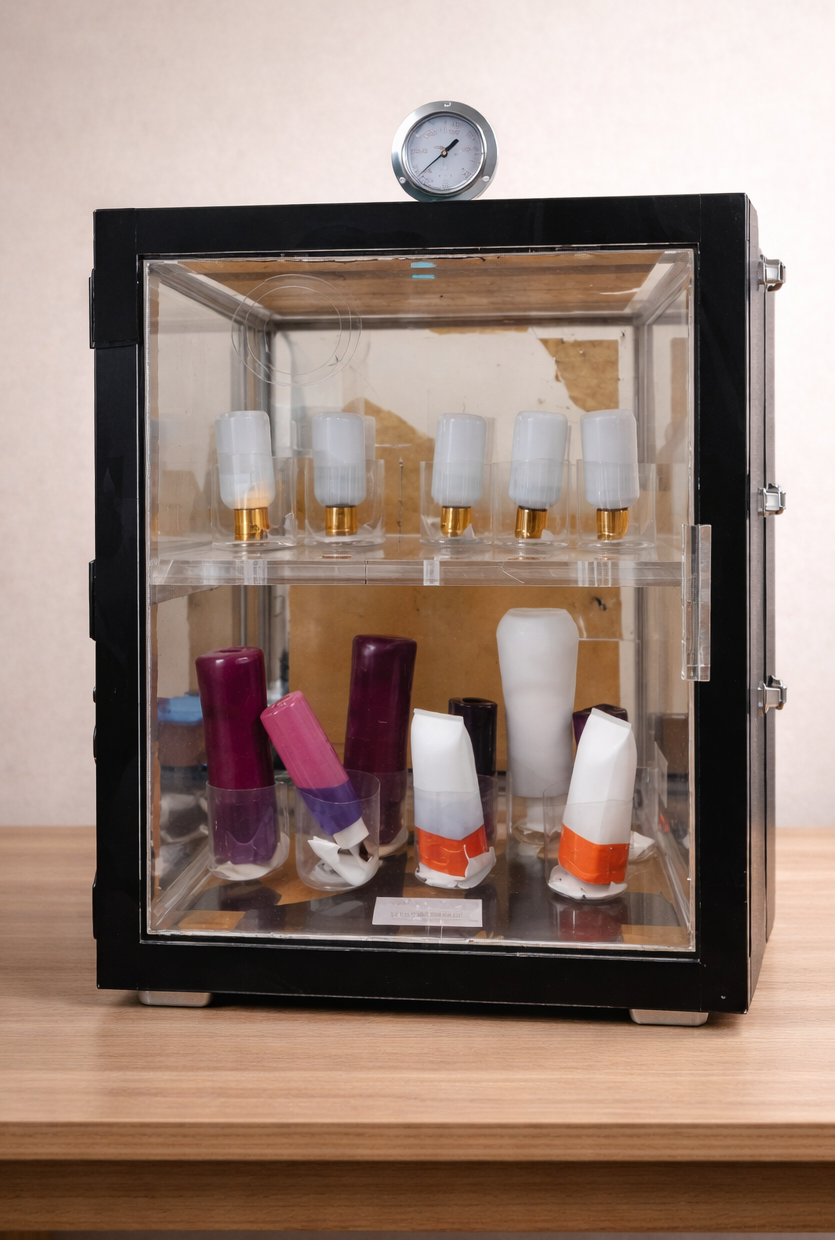

Vacuum Desiccator

Vacuum Drying and Storage

Vacuum Desiccator

A sealed vacuum chamber designed to remove moisture and protect sensitive samples in a controlled dry environment.

  • Vacuum-sealed chamber for efficient drying
  • Protects hygroscopic and moisture-sensitive materials
  • Transparent chamber for easy monitoring
  • Compatible with standard laboratory vacuum pumps
Mode
Vacuum-assisted
Design
Transparent chamber
Applications
Drying, storage, sample preservation

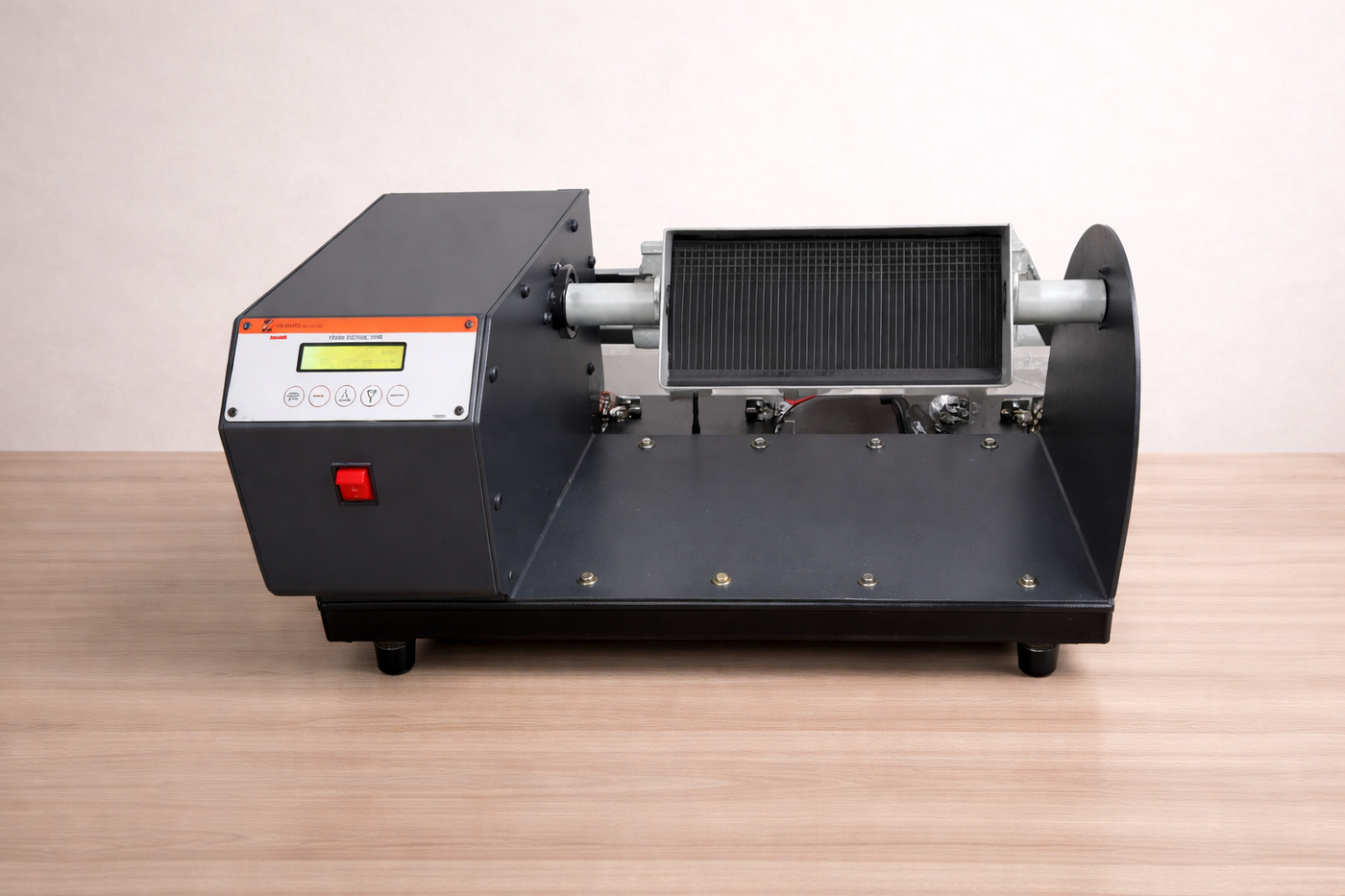

Liquid-Liquid Extraction Shaker

Rotary Mixing System for LLE

Liquid-Liquid Extraction Shaker

A rotary agitation system that supports liquid-liquid extraction with controlled and uniform mixing of immiscible solvent phases.

  • Adjustable rotation speed for phase interaction
  • Timer-based extraction control
  • Compatible with varied solvents and sample types
  • Compact footprint for laboratory benches
Speed Range
20-150 RPM
Timer Range
0-10 minutes
Operation
Rotary agitation
Applications
Pharmaceutical, environmental, research labs

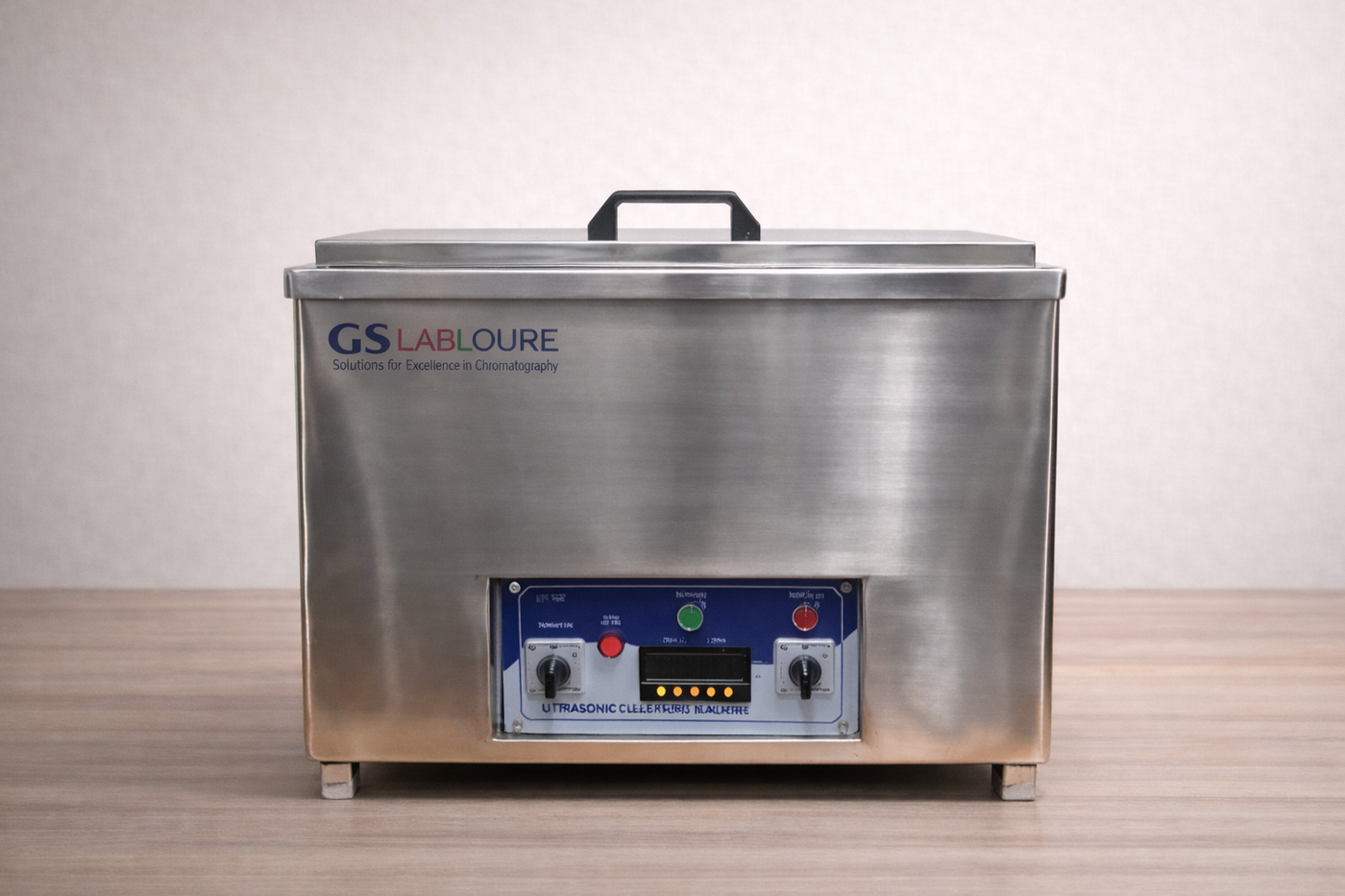

Ultrasonic Cleaning Bath with Chiller

Temperature-Controlled Ultrasonic System

Ultrasonic Cleaning Bath with Chiller

A temperature-controlled ultrasonic cleaning bath with integrated chiller for precision cleaning, degassing, and sample processing.

  • High-power ultrasonics for thorough cleaning
  • Integrated chiller maintains low temperatures
  • DEGAS, sweep, and ultrasonic modes
  • LCD display with programmable timer
Tank Capacity
20 L, 350 x 300 x 200 mm
Material
SS 304L, mirror finish
Ultrasonic Power
400 W
Frequency
33 kHz
Temperature Range
Ambient to 10 C
Power Supply
220 V, 50 Hz, single phase

Documentation and Support

GS Labloure provides product documentation and technical support for installation, training, and troubleshooting.

Quality assurance certificate MSDS certificate Certificate of conformity Calibration certificate Traceability certificate Test certificates Warranty certificate IQ, OQ, and PQ with accuracy checkpoints

Need a configuration for your workflow?

Share your sample count, solvent workflow, and application requirements. Our team can help identify a suitable system configuration.
